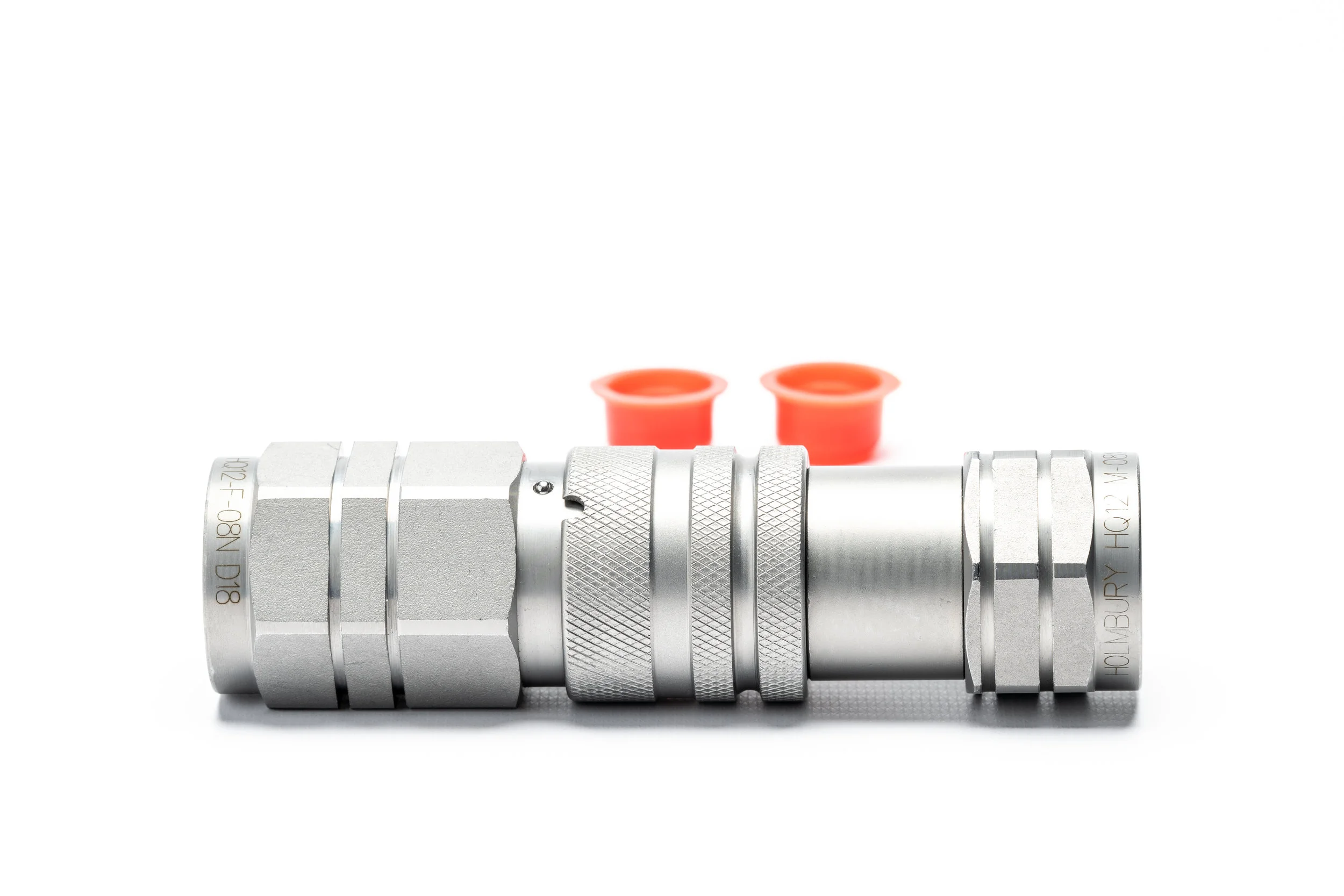

1/2" NPT Hydraulic Quick Connect Flat Face Coupler (SET)

1/2" NPT Hydraulic Quick Connect Flat Face Coupler (SET)

47.94

Holmbury 1/2" NPT, 1/2" Body Skid Steer Flat Face Hydraulic Quick Connect Coupler

Always FREE SHIPPING!!!

Customer Service You Can't Beat

McLaren now offers a select lineup of Holmbury Flat Face Couplers. Renown for leak free performance in high pressure pulse, hammer circuits and demanding applications, we sell the OEM Preferred Couplings.

Leak Free Performance  · OEM High Performance Quality You Can Trust · Industry Experience You Can Count On

Since 1982

You will be getting OEM Quality parts that will last 2X-3X the lifespan of any aftermarket hydraulic quick connect coupler, guaranteed. Holmbury Hydraulics has been selling direct to major OEMs including Caterpillar and John Deere for years.

Thread Size: 1/2"

Thread Type: NPT (tapered pipe)

ISO Size (diameter of coupler face): 1/2"

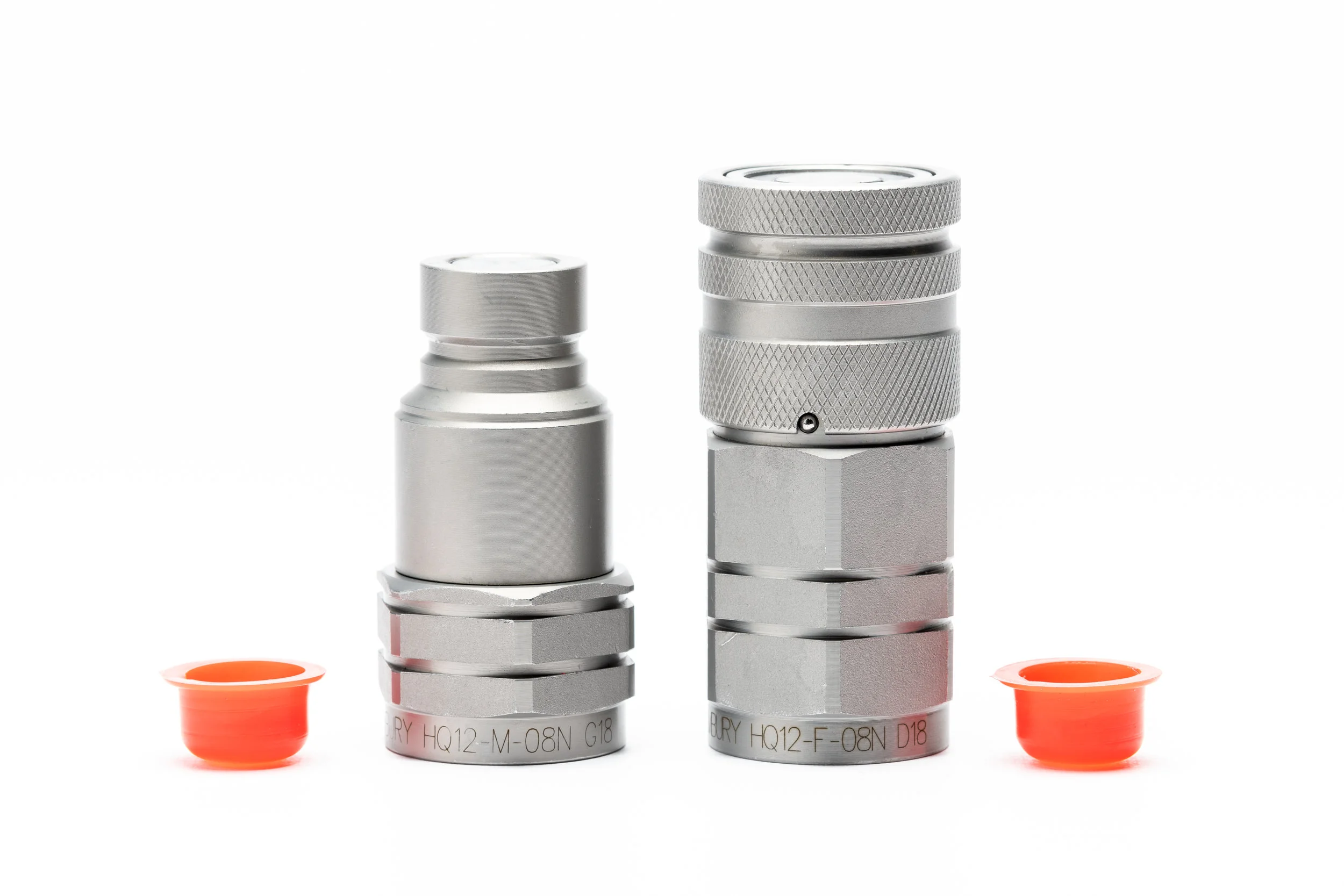

Holmbury MPN: HQ12-F-08N (Female) | HQ12-M-08N (Male)

McLaren MPN: 61X212X14 (Female) | 62X212X14 (Male)


Interchange with most models of skid steers loaders and attachments including

Bobcat, John Deere, CAT, Case, New Holland, Kubota, and many others.


Construction:

  • Manufactured in Germany

  • Carbon steel with zinc nickel plating (1200 hours with no red rust in salt spray tests)

  • Universal quick disconnect interchangeability with other couplings made to ISO 16028 standard

  • Dependable quick coupling operation that can be used in high operating pressures and high flow rates

  • Long lasting performance

  • Couplers have been tested to the ISO 7241-2 Standard

Features:

  • Heavy Duty Design with 5075 PSI Rating

  • Safety locking sleeve helps prevent accidental disconnections

  • Zinc-Nickel plating provides superior corrosion resistance

  • Flat face design prevents fluid loss during disconnection and is easy to wipe clean

  • Bidirectional flow

  • Compact profile with high flow performance

  • Harden steel construction with anti-corrosive plating

  • Sleeves are hardened to resist deformation and maximize life of the coupler

  • Allows for minimal inclusion of air and contaminants during connection

  • Valve design that allows for a minimal pressure drops and one hand operation

  • Operating temperatures: -40°C (-40°F) to 106°C (223°F)



Included:

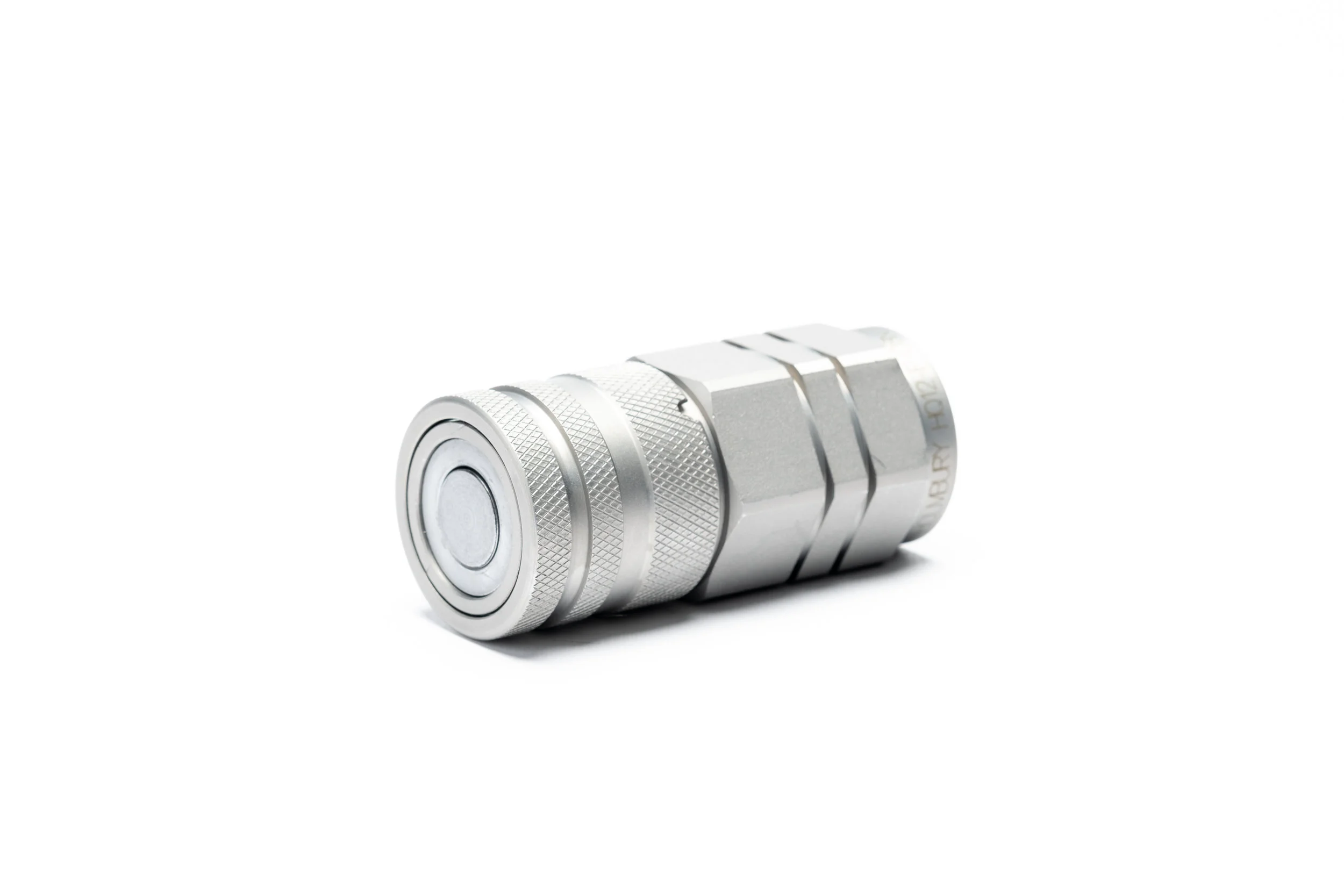

  • 1 Female Flat Face Coupler

  • 1 Male Flat Face Coupler
